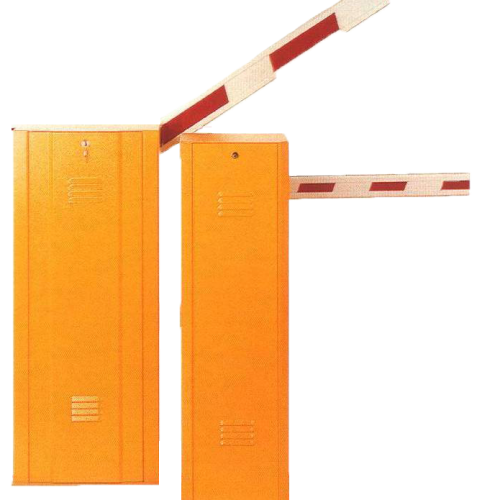

Cedamatic

OPERATING LIMITS	TECHNICAL DATA	CS 250	CS 500	CS 650
CS 250: 2,50 mt	Power supply	V A.C. 230	V A.C. 230	V A.C. 230
CS 500: 2 – 5 mt	Motor feed	V D.C. 24	V D.C. 24	V D.C. 24
CS 650: 4 -6,50mt	Motor power	W 70	W 70	W 70
	Absorbed current	A 4,5	A 4-6	A 4-6
	Shaft torque	Nm 100	Nm 210	Nm 290
	Operating frequency	*	*	*
	Gearing-down ratio	0.007	0,005	0,005
	Class of insulation	F	Y	Y
	Operating temperature	-20°/+70° C	-20°/+70° C	-20°/+70° C
	Opening time	sec. 2	sec. 2-7	sec. 4-9
	Lubrification		grease**
	Weight	Kg 40	Kg 61	Kg 105
	Dimensions	mm 220x200xH1000	mm 320x320xH1060	mm 450x250xH1075
